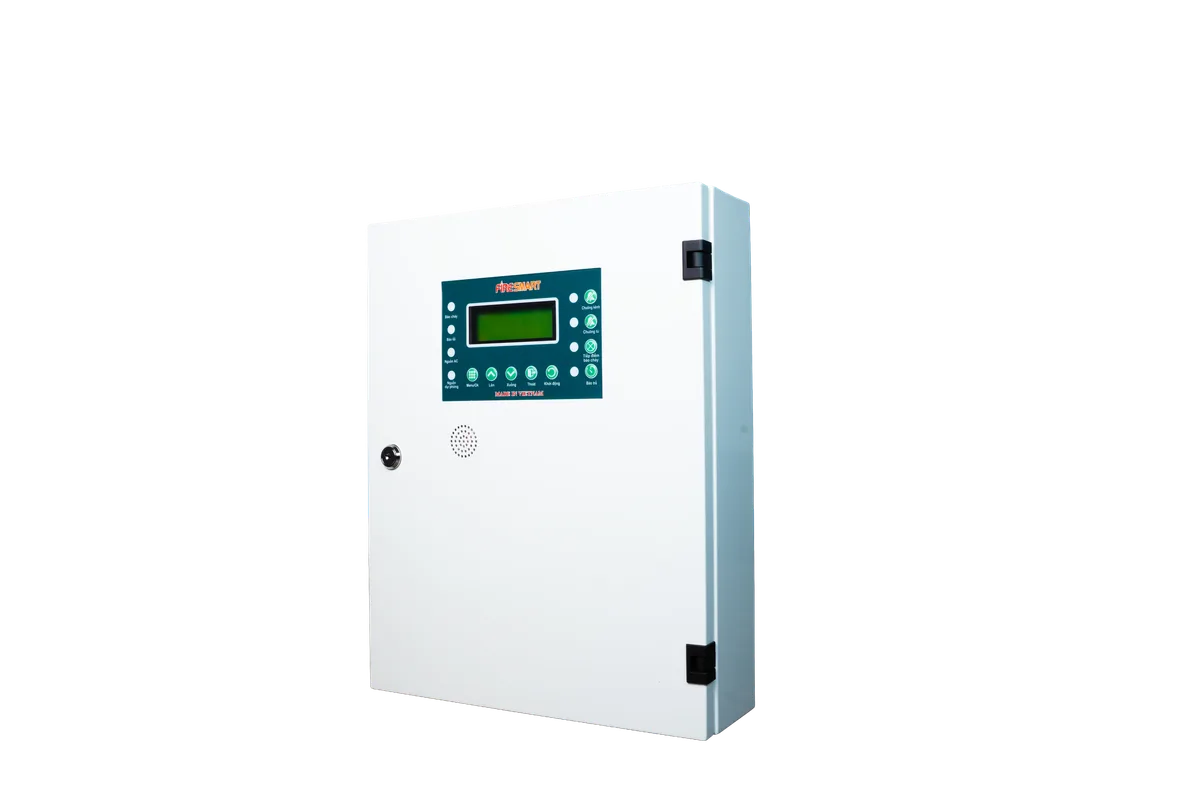

Conventional FACP 8 zones to 40 zones FSP-8L

FIRE ALARM CONTROL PANEL
– 8 lines, 16 lines, 24 lines, 32 lines and 40 lines

– Maximum number of fire detectors in a line: 32
– Connecting line: two-wire
– Maximum resistance of a line: 100Ω

CONTROLLABLE OUTPUTS
– Type: Potential
– Electrical characteristics: (24±5)V/500 mA

RELAY OUTPUTS FOR FAULT CONDITIONS
– Type: potential free, switching
– Electrical characteristics: 3 A/125 V AC; 3 A/30 V DC

RELAY OUTPUTS FOR FAULT CONDITIONS
– Type: potential free, switching
– Electrical characteristics: 3 A/125 V AC; 3 A/30 V DC

INDICATIONS OF REGISTERED EVENTS
– Light indication: LEDs
– Text messages: LCD display – 4 lines, 20 symbols, Latin characters, backlit
– Sound: Built-in sounder

ACCESS LEVELS TO CONTROL FUNCTIONS: 4 (in compliance with EN 54/2)

POWER SUPPLY
– Voltage: 220/230 V
– Frequency: 50 Hz

BACKUP BATTERIES: 2x12V / 12 Ah

OPERATION IN DUTY MODE UPON INTERRUPTED MAINS SUPPLY
– Minimum configuration: 80 h
– Maximum configuration 30 h

CONSUMPTION ON BACKUP BATTERIES SUPPLY IN DUTY MODE AT 24 V
– Minimum configuration: <155 mA
– Maximum configuration: <400 mA

POWER SUPPLY TO EXTERNAL DEVICES
– Voltage: (24±5)V
– Maximum current value (current of controllable outputs included): 1,5 A

WEIGHT (BACKUP BATTERIES NOT INCLUDED): 6,6 kg
DIMENSIONS: 450 x 355 x 115mm
OPERATING TEMPERATURE: -5 oC to +40 oC
RELATIVE HUMIDITY: to 93 %
DEGREE OF PROTECTION: IP 40

Possible configurations:

FSP 8L
– 8 fire alarm lines
– 1 controllable output
– 2 relay outputs for fire

FSP 8L + M8L
– 16 fire alarm lines
– 1 controllable output
– 2 relay outputs for fire

FSP 8L + 02 M8L modules
– 24 fire alarm lines
– 2 controllable outputs
– 2 relay outputs for fire

FSP 8L + 03 M8L modules
– 32 fire alarm lines
– 2 controllable outputs
– 2 relay outputs for fire

FSP 8L + 04 M8L modules
– 40 fire alarm lines
– 2 controllable outputs
– 2 relay outputs for fire

In each FSP 8L control panel, it is possible to add maximum 04 M8L modules to make a 40 lines conventional CP.
