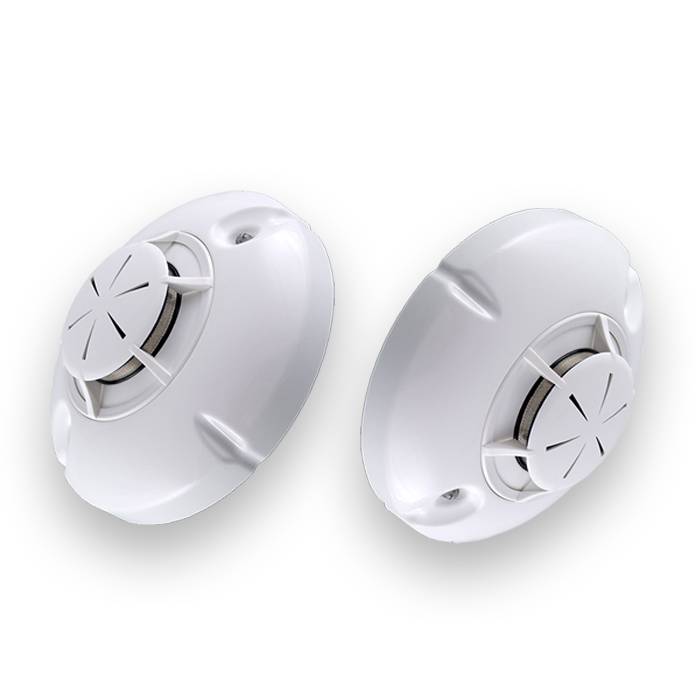

Rate of rise heat detector FSH-001
Mua ngay Gọi điện xác nhận và giao hàng tận nơiDescription
- The FSH-001 gives early warning on a rate of rise or a fixed temperature threshold.
- Class A2R or BR per ISO 7240 / TCVN 7568-14:2025-5. Protected area: a circle of 15 m diameter.
- Do not install it facing heaters, above stoves or ovens.
The fire detector gives reliable early warning of a fire. It alarms when the temperature rises fast, or when it reaches a fixed threshold, in the protected premises.
It comes in two versions, by temperature threshold, in accordance with the European Standard ISO 7240 / TCVN 7568-14:2025-5. It suits premises with normal ambient temperature and no sudden changes.
The FSH rate of rise heat detector suits most applications that need heat detection.
Keep it away from hot air heaters, stoves, ovens and other heat sources.
Technical data
| Parameter | Value |
|---|---|
| Supply voltage | (10-30)V DC |
| Duty mode current | 120 μA/22,5V DC |
| Alarm mode current | — |
| Sensitivity | In accordance with ISO 7240 / TCVN 7568-14:2025-5, class A2R or BR |
| Initialization time | 40s |
| Protected area | A circle with diameter = 15m (ISO 7240 / TCVN 7568-14:2025) |
| Maximum height | 11m (ISO 7240 / TCVN 7568-14:2025) |
| Degree of protection | IP 43 |
| Operation temperature | -10oC to 55oC |
| Relative humidity | (93±3)% at 40°C |
| Dimensions (base included) | Ø100 mm, h 47mm |
| Weight (base included) | 0,100 kg |
| Terminals | For wires with cross section (0.8-2.5)mm2 |
Rate-of-rise vs. fixed-temperature heat detection
The FSH-001 is a combined-response heat detector. It trips on a rate-of-rise in temperature, which is a fast increase over a short time, typical of a flaming fire. It also trips on a fixed threshold (class A2R or BR per ISO 7240 / TCVN 7568-14:2025-5, see the table above).
Rate-of-rise response reacts sooner to a fast-developing fire, before the room reaches the fixed alarm temperature. It is useful in areas with a fairly stable ambient temperature.
A fixed-temperature-only detector ignores rapid but harmless heat swings. It alarms only when the set threshold is reached. This resists nuisance alarms in spaces with normal but variable heat, such as kitchens, boiler rooms and some plant rooms.
This is also why the datasheet above warns against installing it directly facing heaters, stoves, ovens or other heat-generating equipment.
Read Choosing the Right Fire Detector Type for Hot, Humid Climates to compare smoke, heat and combined detectors. A wireless option is the Wireless heat detector WHD-1.
Fixed-temperature vs rate-of-rise: where each one belongs
Heat detectors suit rooms where smoke, dust or steam would trigger a smoke detector. The right response depends on how stable the room temperature is. The table below is a selection guide. It does not replace the design under TCVN 7568-14:2025.
| Space | What to expect | Response to consider |
|---|---|---|
| Warehouse or storeroom with stable ambient temperature | Slow, steady temperature, no heat sources nearby | Rate-of-rise plus fixed threshold (FSH-001: class A2R or BR) reacts sooner to a fast-growing fire |
| Kitchen | Short, repeated heat peaks from cooking | Fixed-temperature response is less prone to nuisance alarms; never mount directly above stoves or ovens |
| Generator room or boiler room | Large temperature swings during normal running | Check the room’s normal temperature range first; a fixed-temperature response is usually the safer choice |
This datasheet lists the A2R and BR classes only. For rooms where a fixed-temperature-only response fits better, contact FireSmart for the matching detector. Climate also matters. Heat and humidity change the choice: see Choosing the Right Fire Detector Type for Hot, Humid Climates.
The Multi-point heat detector FireWatch works differently. It watches the surface temperature of an object from up to 20 m.
✅ Need a quote for the FSH-001 heat detector?
Contact FireSmart, hotline 0983.016.201.
Frequently asked questions about the Rate of rise heat detector FSH-001
1️⃣ What is the Rate of rise heat detector FSH-001 used for?
Rate of rise heat detector FSH-001 is a component of the FireSmart fire alarm system.
2️⃣ Which standard does it meet?
It is designed to meet TCVN 7568-14:2025 (based on ISO 7240), the Vietnamese standard for the design and installation of fire alarm systems.
3️⃣ How can I get a quote or technical support?
Contact FireSmart — a Vietnamese manufacturer of fire alarm devices and systems — for consultation and pricing.
4️⃣ What is the difference between rate-of-rise and fixed-temperature detection?
Rate-of-rise detection reacts to a fast increase in temperature over a short time. It can respond sooner to a fast-developing fire. Fixed-temperature detection alarms only once a set threshold is reached. This resists nuisance alarms from slow, non-fire heat changes. The FSH-001 combines both responses.
5️⃣ Where should I not install a rate-of-rise heat detector?
Do not mount it facing hot air heaters or above stoves and ovens. Sudden heat from normal operation can trigger it.
6️⃣ Is a heat detector a replacement for a smoke detector?
No. A heat detector responds to temperature only. Use it where smoke, dust or steam would cause nuisance alarms from a smoke detector. It reacts later than a smoke detector to a smouldering fire.
7️⃣ What is the maximum mounting height and coverage of the FSH-001?
The maximum height is 11 m. The protected area is a circle of 15 m diameter. Both follow ISO 7240 / TCVN 7568-14:2025.
